UBIQUITOUS 300B
THE ENDGAME ANALOG HUB
A cost-no-object preamplifier, developed exclusively around the legendary Western Electric 300B.

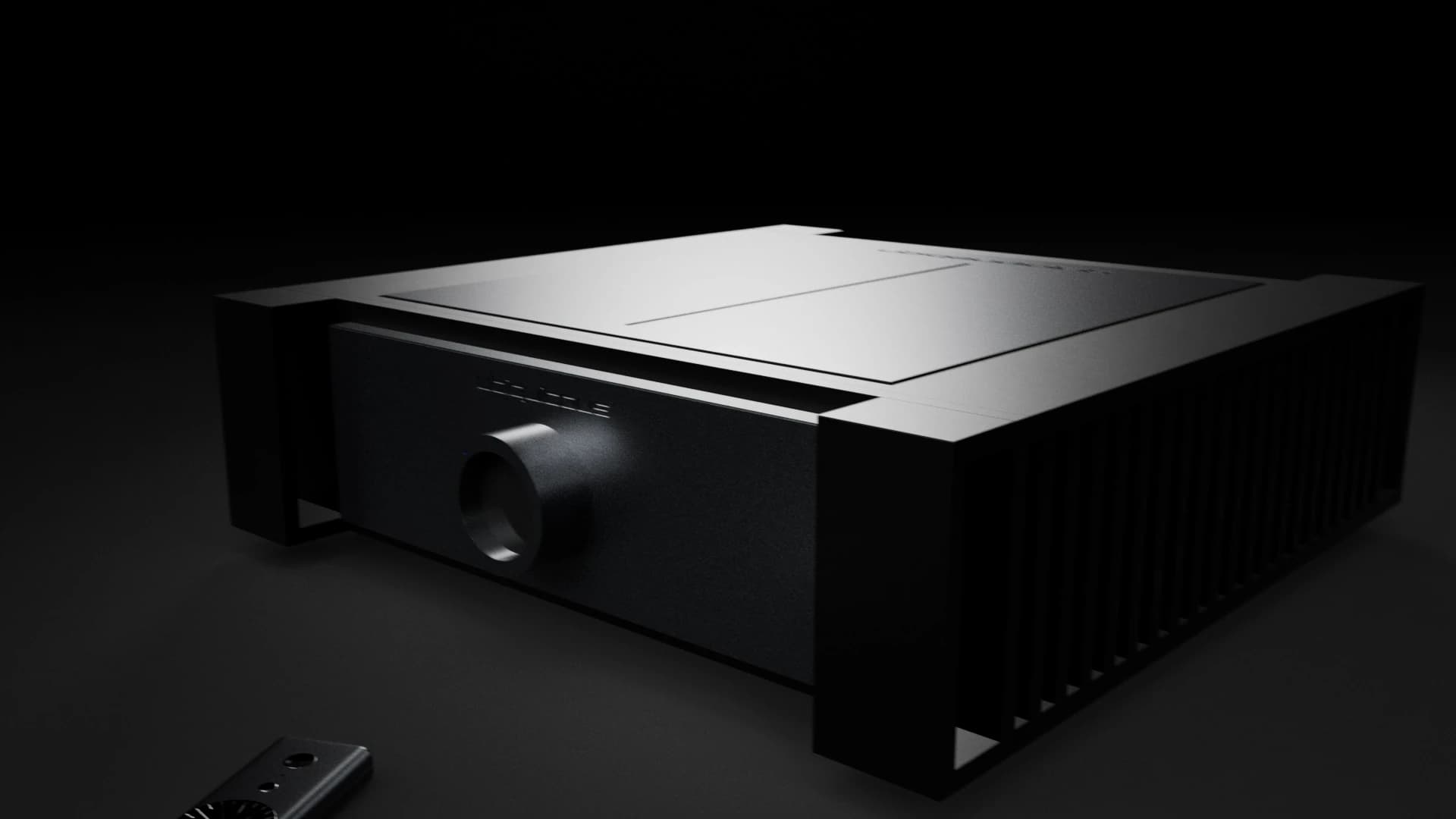

UBIQUITOUS 300B PREAMPLIFIER
To complement the exceptional micro- and macrodynamics, transparency, and resolution of our power amplifiers, we needed one crucial element: a preamplifier that delivers seamless, continuous reproduction of authentic human expression – whether vocal nuance or performance uniqueness – across every genre of music. After years of experimenting with different approaches, we settled on an ultraminimalist hybrid preamplifier design, centred exclusively on the Western Electric 300B.
Introduced by Western Electric in 1938 and recently reissued by the same company, the new 300B electron tube meets all Ubiqaudiolab requirements for dynamic expressiveness, inner resolution, unforced transparency, and a natural harmonic spectrum, finally bringing together all the elements of real musical performances that are essential for a system designed to convey the scale and grandeur of a live musical event.
Developed exclusively around this legendary tube, the Ubiquitous 300B is a cost-no-object, high-end preamplifier engineered to work seamlessly with Ubiqaudiolab power amplifiers and to serve as a true state-of-the-art preamplification control centre – an endgame analogue hub – ready to transport and amplify an unaltered signal from the world’s finest ultra-high-end audio sources, with objective authority. Neutral, accurate sound is one thing, but achieving truly realistic lifelike reproduction requires much more effort.
The Ubiquitous 300B preamplifier is all about that musical arrival. Fatigue-free at its core, it evokes a thrill for more: more music, more journeys into new sonic micro and macro universes, and more opportunities to rediscover familiar records.
CORE ENGINEERING
Absolute musicality and sonic perfection.
DEEP DIVE
SPECIAL FEATURES
- Timeless design

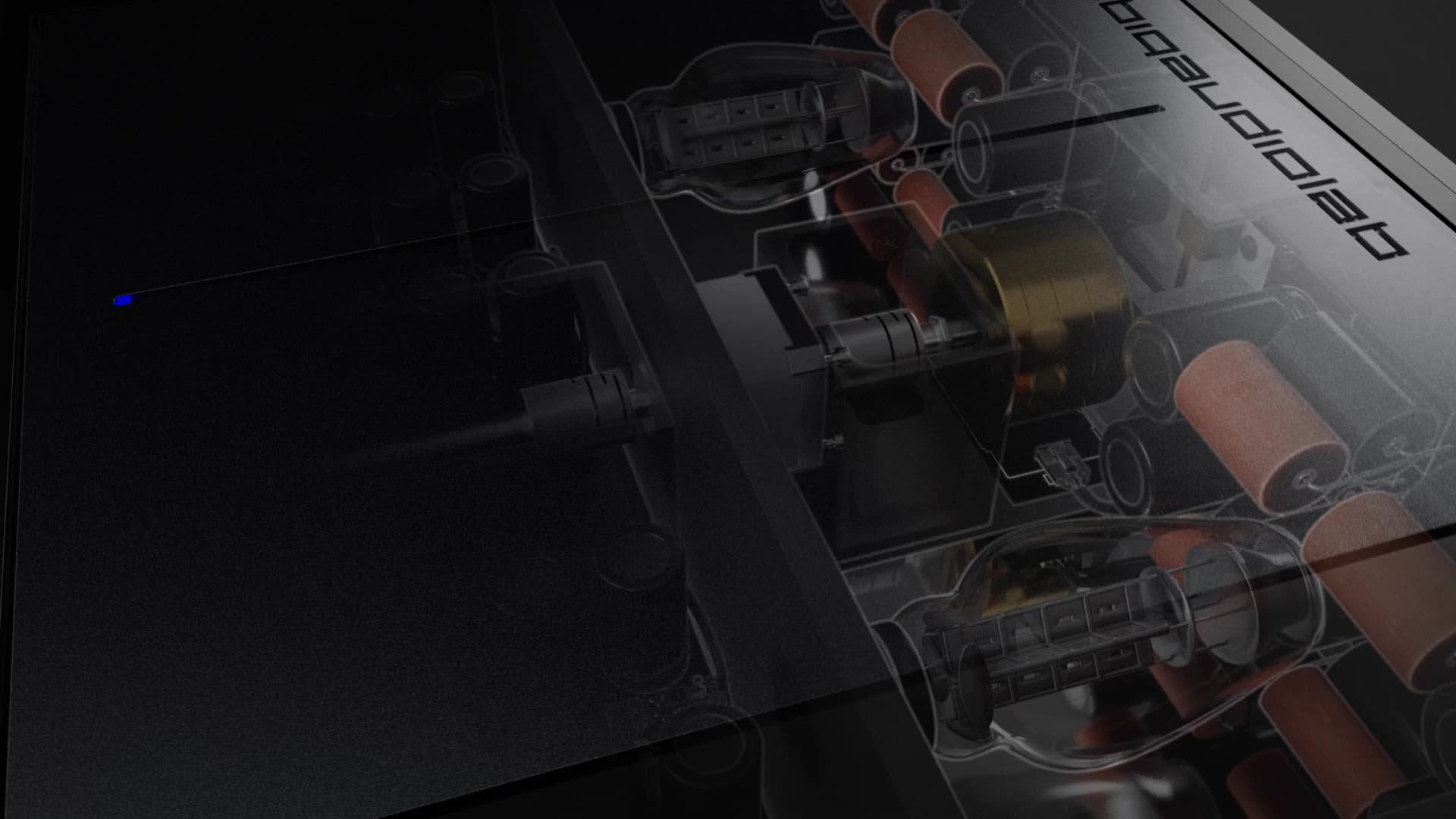

- Dual-mono class-A topology with 300B tube in an intermediate single-ended class-A gain stage

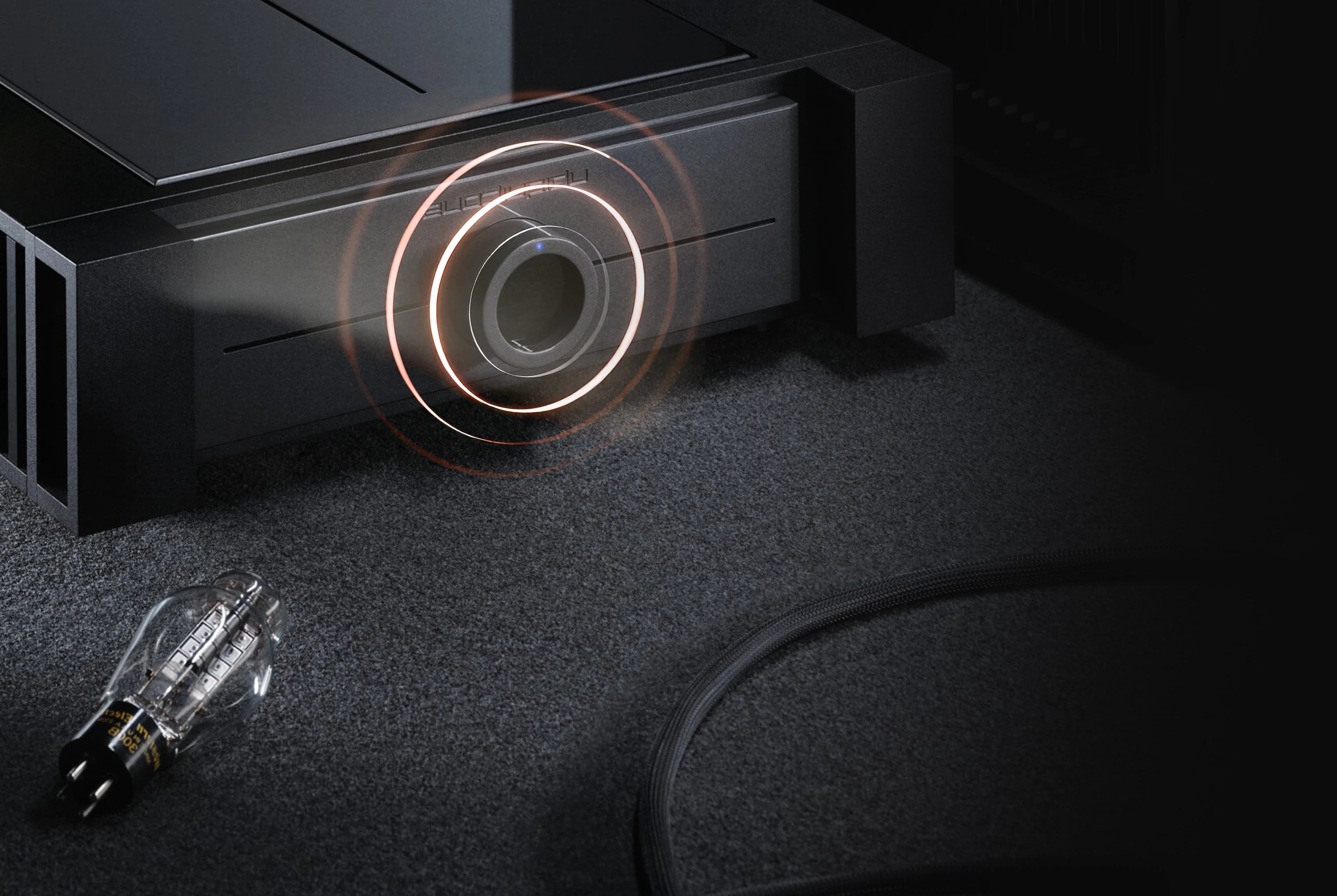

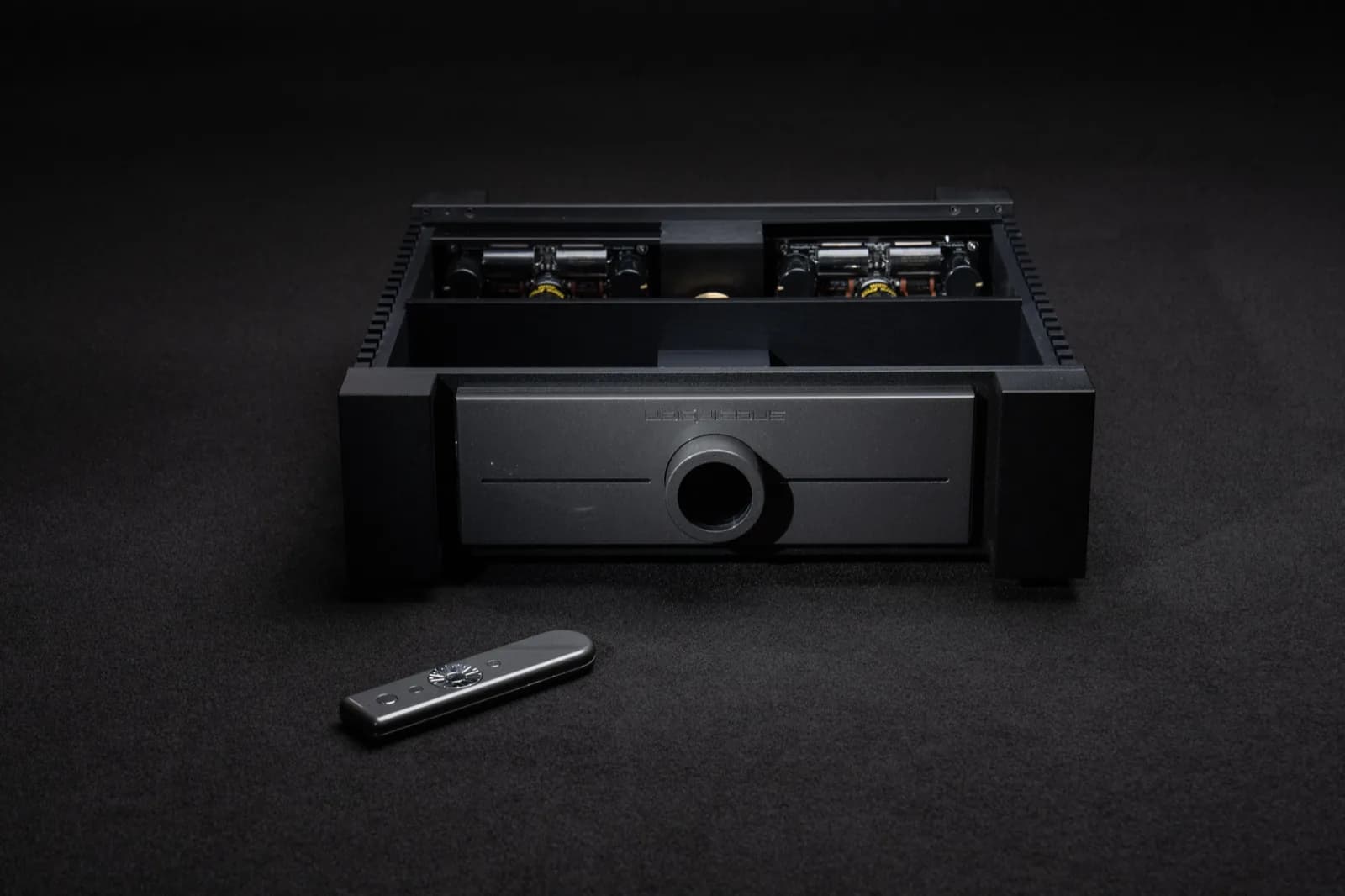

- A single, modern, current-production Legendary Western Electric 300B tube per channel
- 40,000-hour tube lifespan
- Fully symmetrical balanced J-FET class-A input stage

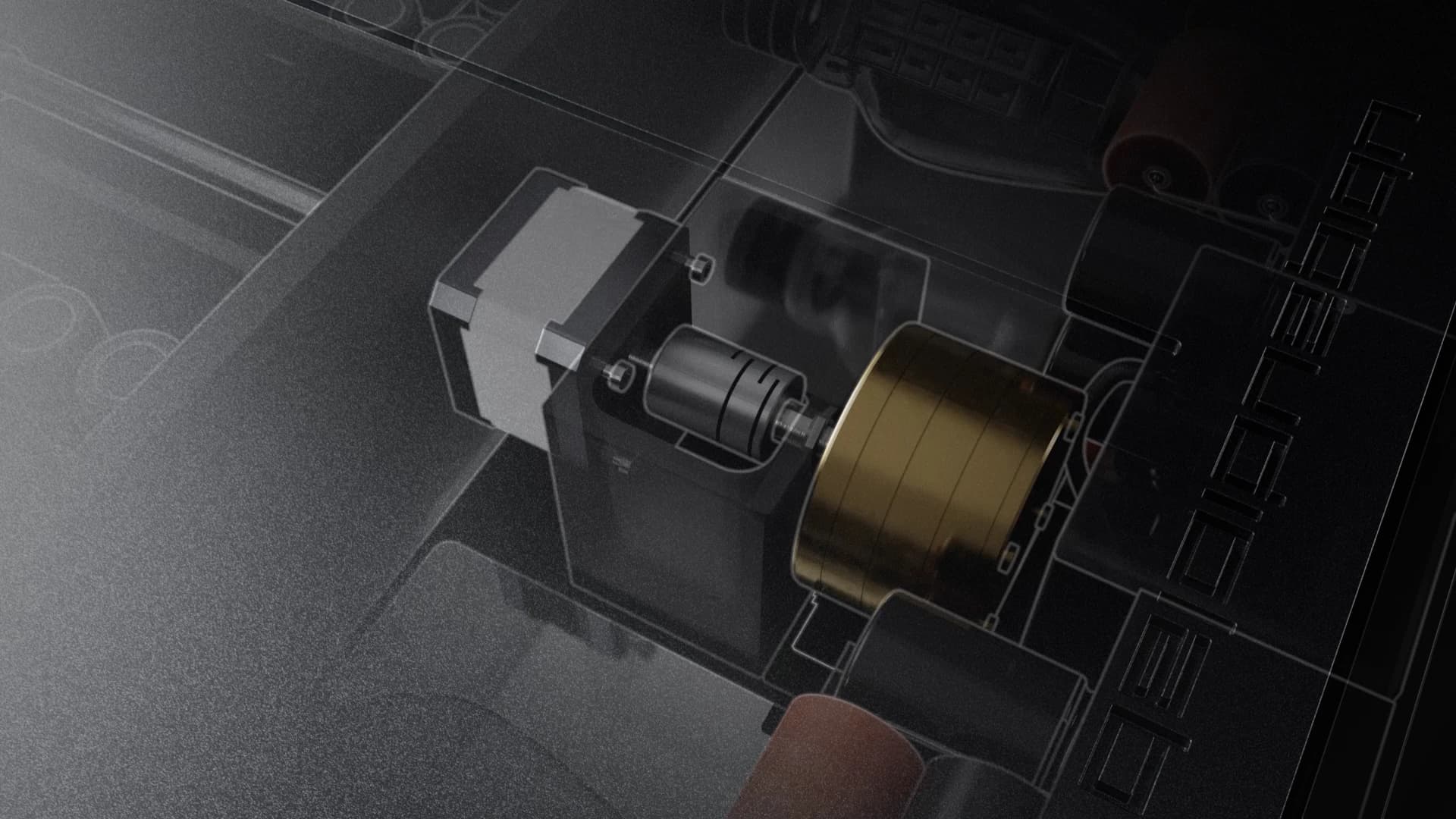

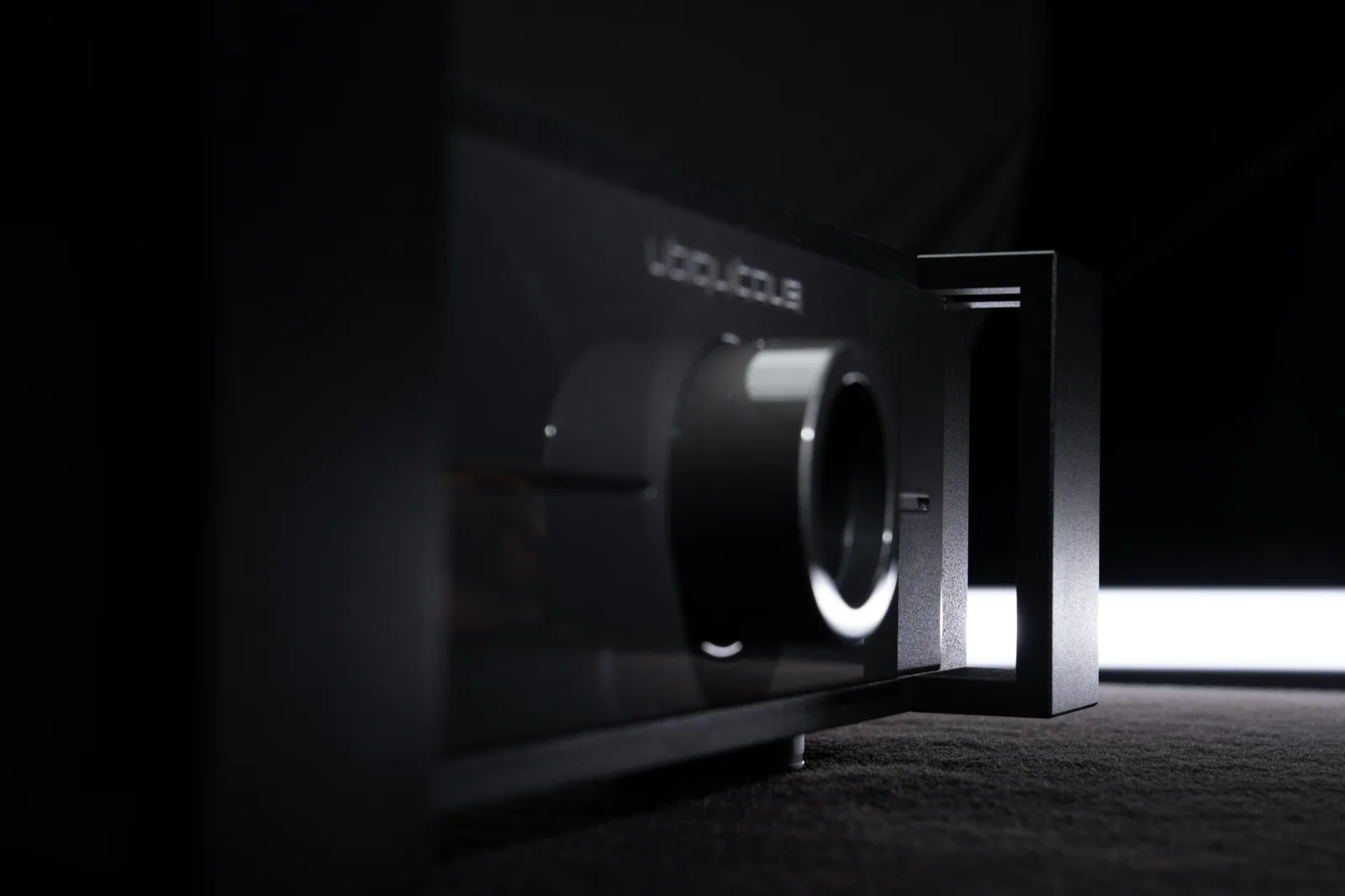

- ALPS RK501 Gold potentiometer controlled by stepper motor
- Precise rotary remote control with 330 steps (0.3 dB per step) and variable rotation speeds
- Perfectly matched and mirrored dual-mono design

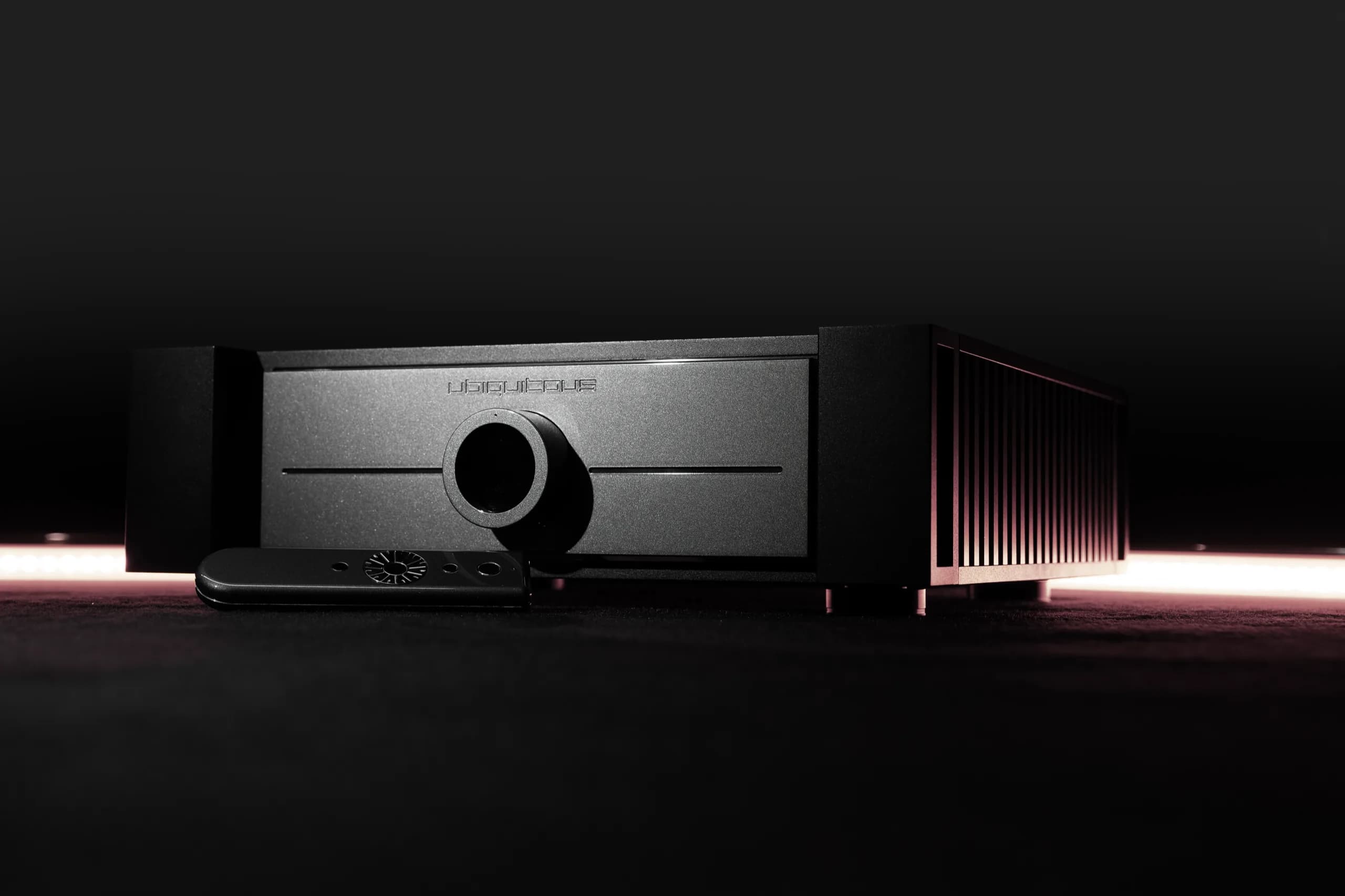

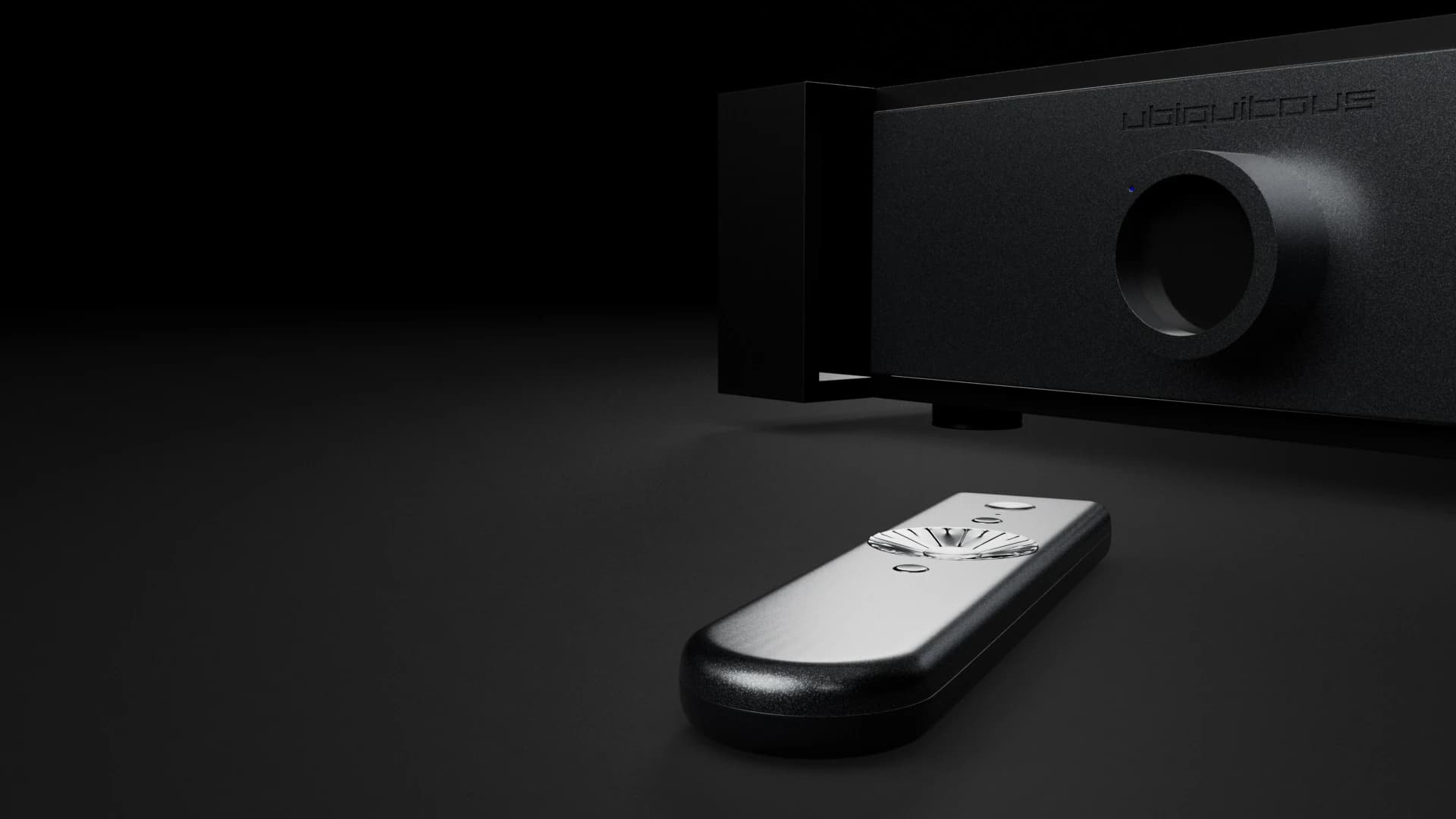

- Custom-made high-tech remote
- Custom high-tech back panel
- Pure SMSPS power supply (7 modules)
- Electromagnetically shielded critical electronic parts

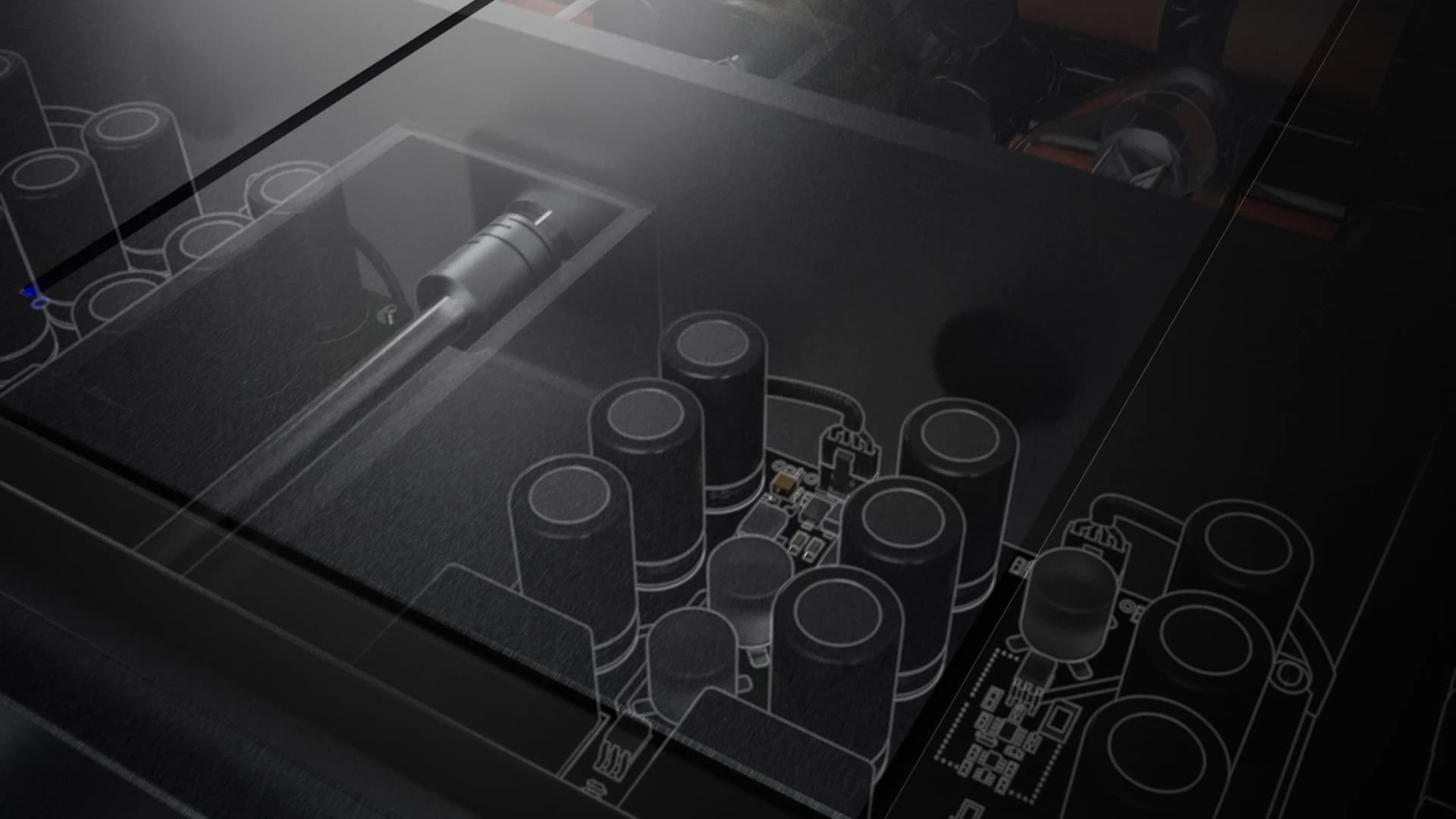

- Mundorf capacitor bank with 0.23 F capacitance in both channels

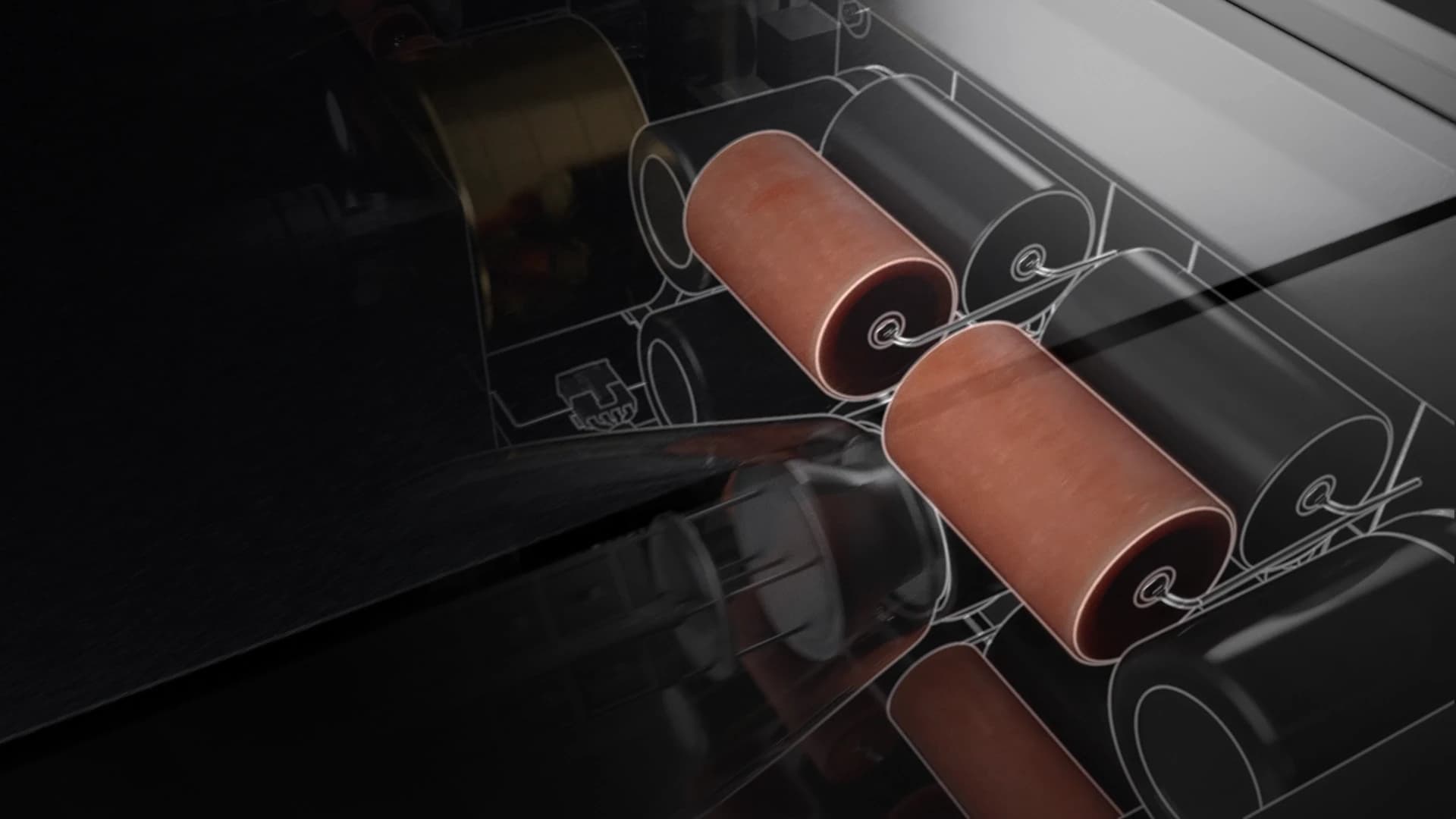

- Jupiter copper foil and Mundorf zinc foil high quality coupling and decoupling capacitors
- DC-protected output
- Tube lifespan counter
- Special mechanically damped feet

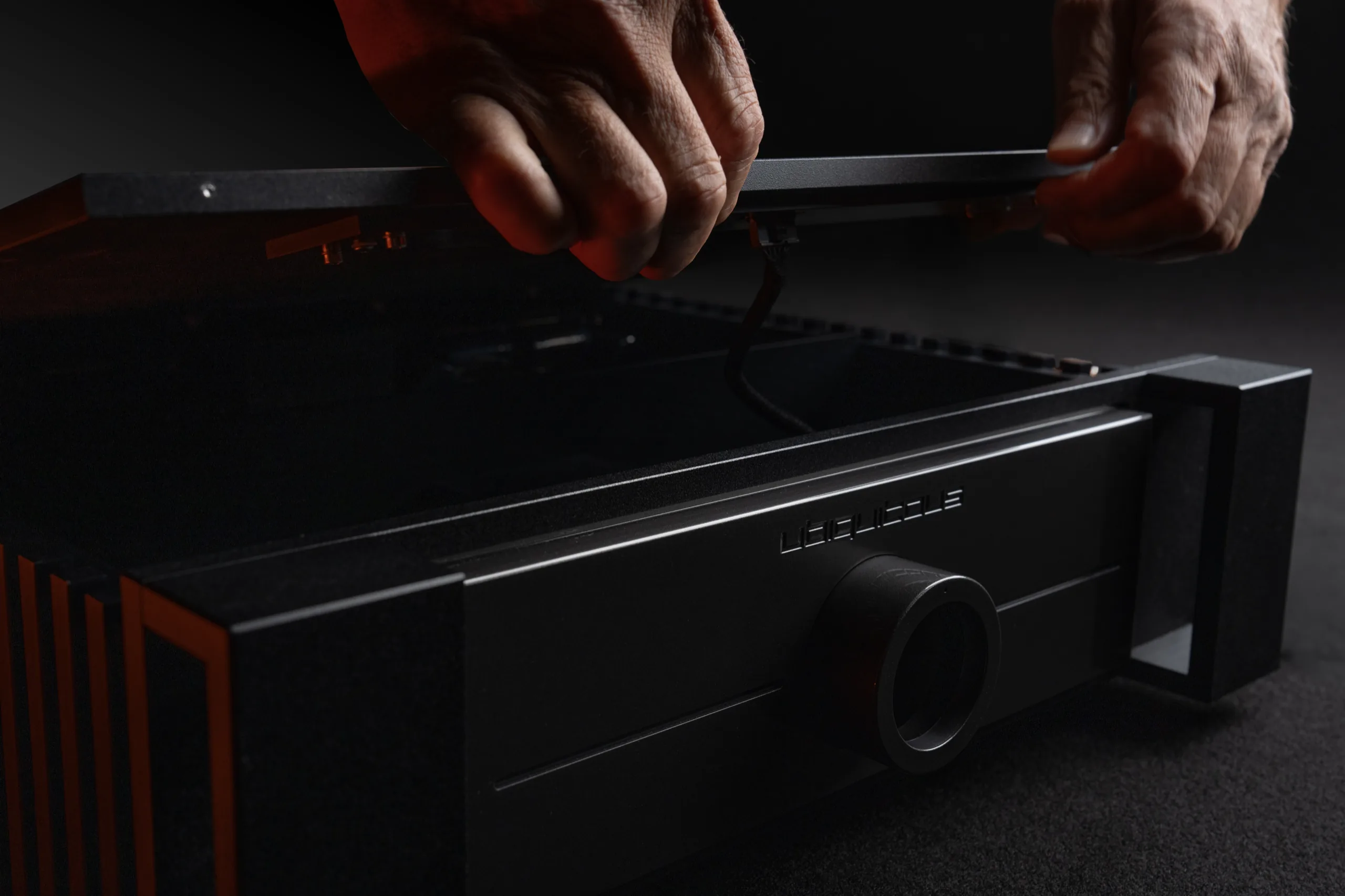

- Unique top plate with Stand-by/On push button
TECHNICAL SPECIFICATIONS
- Inputs: 5 × balanced (XLR)
- Outputs: 2 × variable volume (XLR), 1 × fixed (XLR)
- Capacitance: 236,000 µF
- Input impedance: 200 kΩ
- Output impedance: 0.01 Ω
- Phase shift (@ 20 kHz): <0.1°
- Freq. response (−3 dB): 1 Hz – 1 MHz
- S/N ratio: >110 dB
- Gain: +8 dB balanced
- Channel separation: >110 dB
Dimensions
- Width (W): 48 cm
- Depth (D): 49 cm
- Height (H): 15.3 cm
- Weight: 29 kg
HANDCRAFTED
Every ubiqaudiolab product is built by hand, with no corners cut and no slips into subjectivity. Our designs combine an innovative interplay of art and technology – free of distortion, listening fatigue, and sonic signature – presenting reality objectively, with a unique clarity of origin and presence, where the music is inseparable from its core qualities.
