UBICUBE 700
MONO POWER AMPLIFIERS
Envisioned and conceived from the outset to handle the most demanding loads and drive the finest loudspeakers on the market.
UBICUBE 700
UBICUBE 700, UBIQAUDIOLAB chef’s kiss: a true ultra-high-end power amplifier, envisioned and conceived from the outset to handle the most demanding loads and drive the finest loudspeakers on the market. With uncompromising perfection in mind at every turn, a painstaking process of extensive research and development has led to an amplifier design with no cut corners and no slips into subjectivity, instantly transcending the notion of being just another amplifier.
The heart of UBIQAUDIOLAB amplifiers has been carefully refined through numerous iterations over the years; no stone has been left unturned in tuning, voicing, and optimization. Carefully implemented state-of-the-art electronic circuits, inspired by the finest classic topologies, have been extensively tested and refined down to the smallest detail, then elevated to a 21st-century standard to meet today’s extreme demands for dynamics and resolution. They have undergone extensive, rigorous listening tests and lab-grade measuring, using only industry-standard measurement systems at every step.
The UBICUBE 700 incorporates proprietary, boutique audiophile grade power modules, an engineering marvel – an ultrarefined approach with the shortest possible signal paths – that works seamlessly with an enormous, oversized yet highly advanced power supply. UBIQAUDIOLAB proprietary technologies enable UBICUBE 700 to access an infinite density of acoustic information, revealing the most subtle, feather-light nuances of the human voice and acoustic instruments, the smallest portions of reverberation tails, and the tiniest taps of ambient echoes, with music emerging from submarine, absolute-black depths.
At all times, the UBICUBE 700 amplifier delivers unaltered, perfectly consistent, lightning-fast, on-demand power, ready to adapt to any type or genre of music, never faltering even with complex music material such as thunderous orchestral compositions, highly demanding modern hybrid film scores, or intricate electronic productions. In line with UBIQAUDIOLAB’s ethos of putting musical performance and music first, these unique technologies ensure a complete absence of distortion, listening fatigue, and sonic signature, allowing the music to command the listener’s attention and instantly ignite one-of-a-kind emotional engagement and interaction.
CORE ENGINEERING
Absolute musicality and sonic perfection.
DEEP DIVE

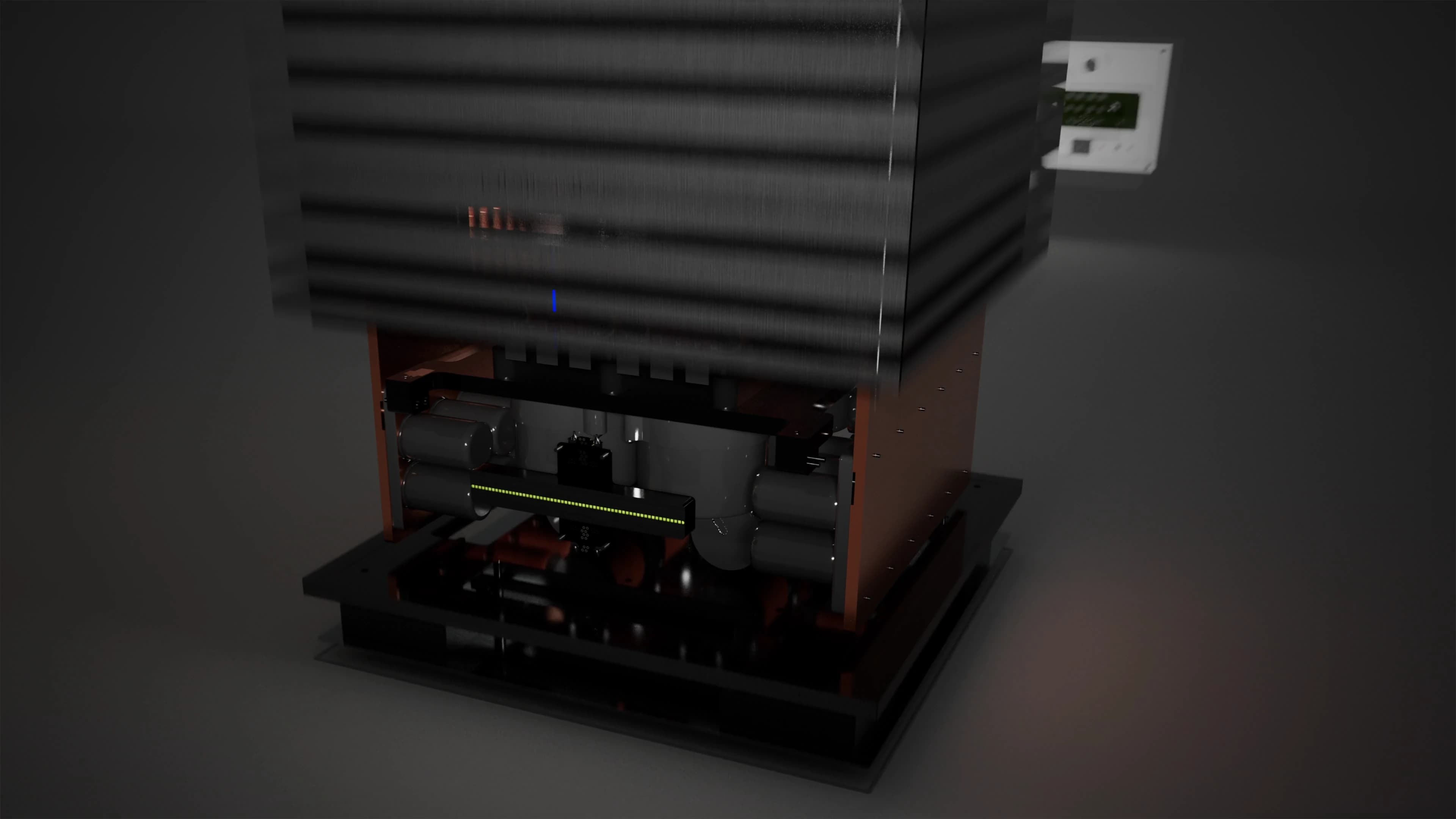

PROPRIETARY BOUTIQUE-LEVEL ULTRA PERFORMING MODULES

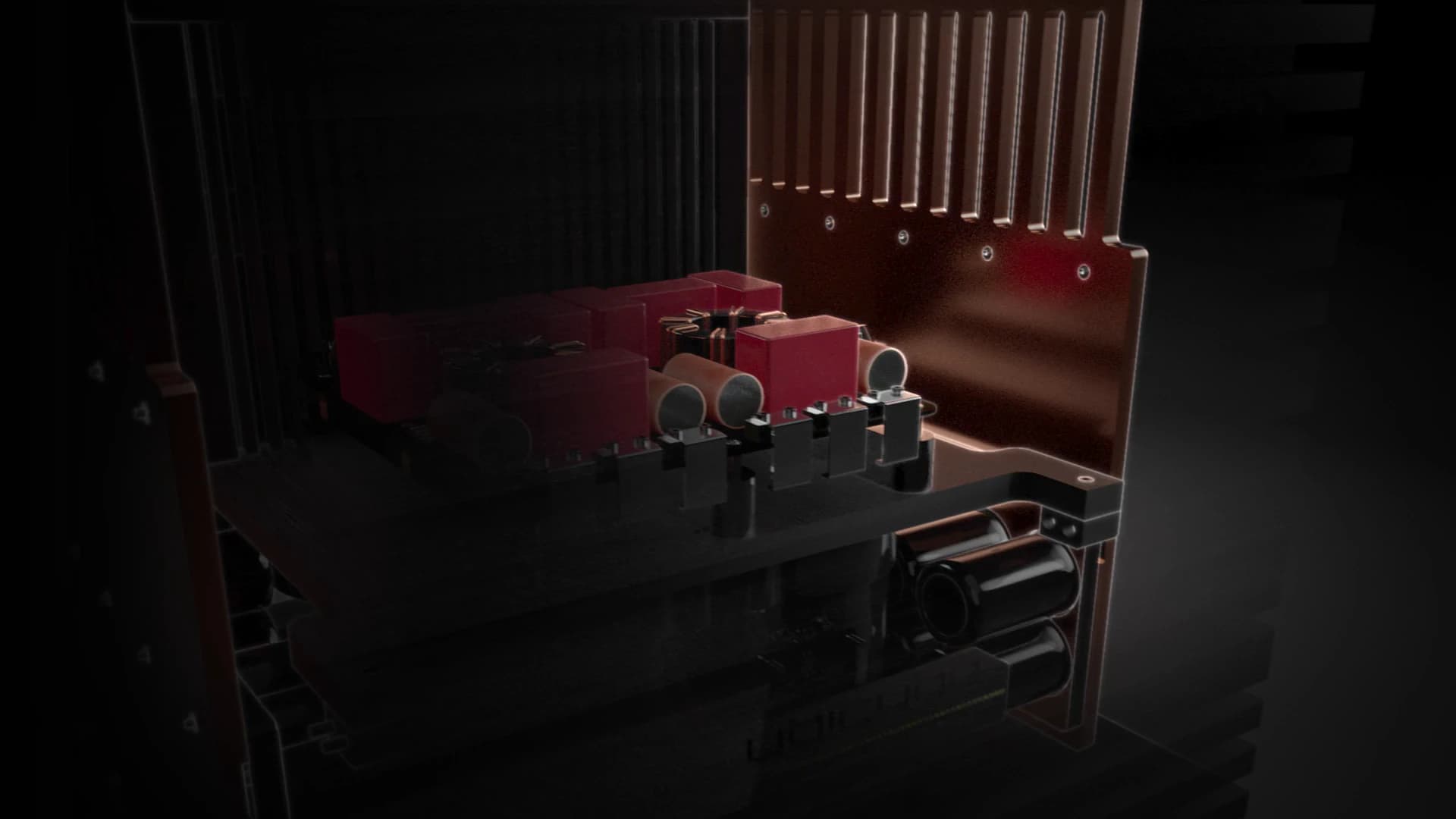

The dedicated 200, 400, and 700 ubiqaudiolab’s proprietary, in-house-developed interchangeable modules feature hand-selected premium components, ultra-short signal paths, and a refined grounding scheme. With advanced mechanical and resonance isolation, thermal protection, and EMI/RFI shielding, the modules deliver ultra-low measured crosstalk and high dB noise attenuation. Judiciously considered, measured, and tested, these state-of-the-art, fine-tuned, boutique-level electronic devices ensure a pure, unaltered signal and a harmonically rich, true-to-source music reproduction.
SPECIAL FEATURES
- Timeless unique design
- Proprietary boutique-level ultra performing power modules

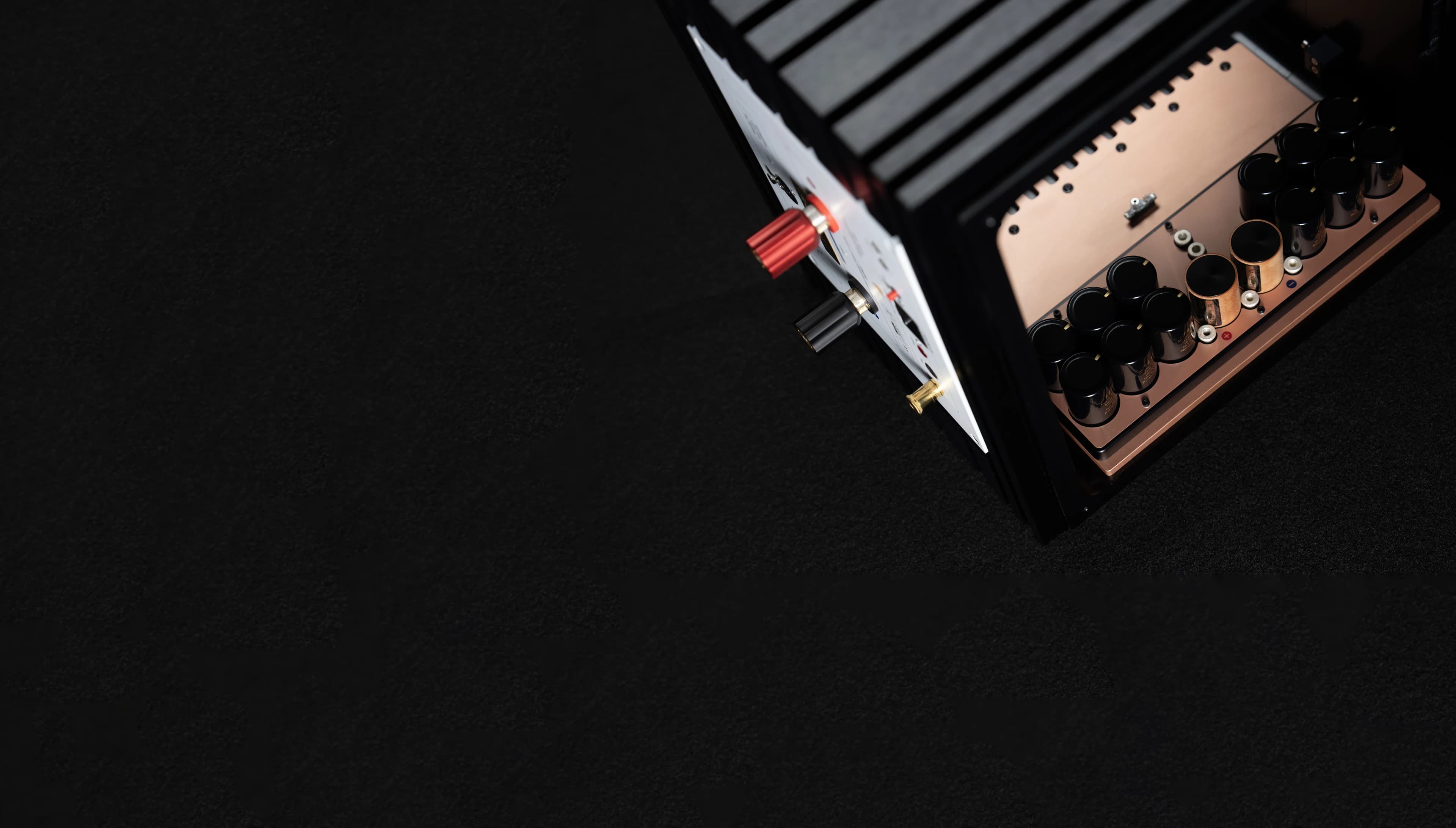

- Solid aluminum monocoque chassis with optimal mechanical stability, vibration control, and heat dissipation

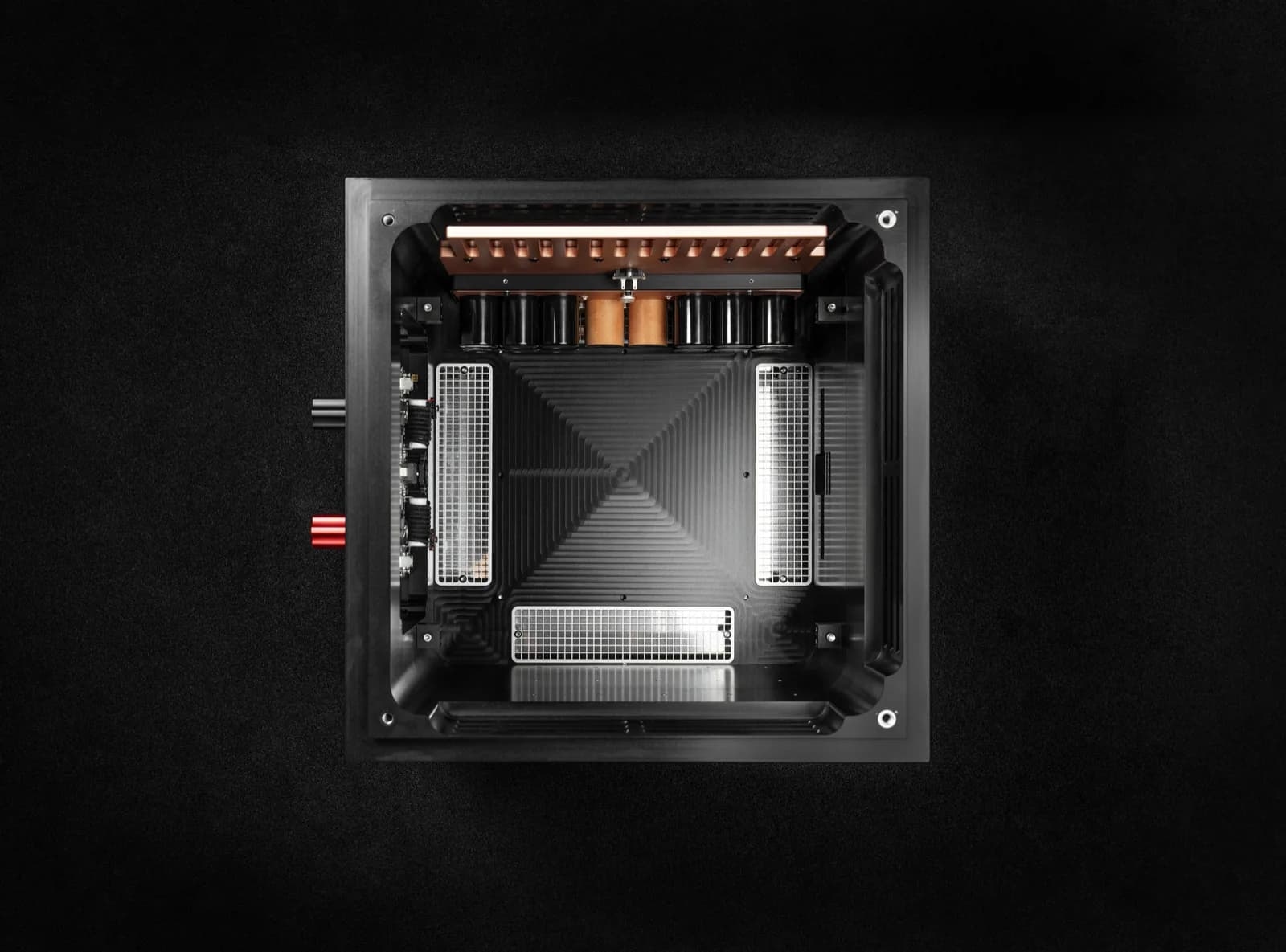

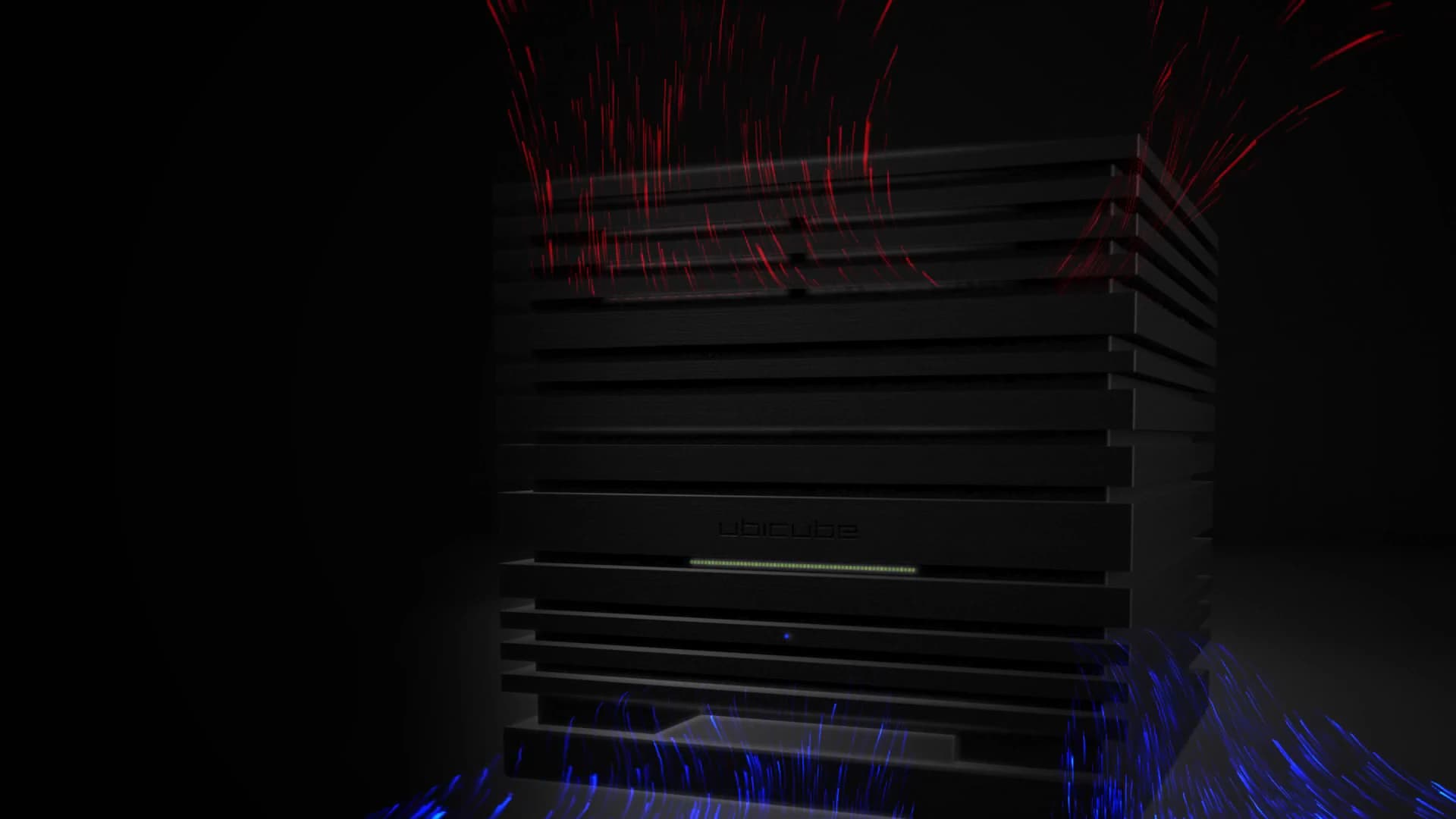

- Massive internal copper heat-dissipation plates with chimney-effect airflow for ultra-fast heat transfer from the power amplifier modules
- Ultra-high-performance monoblock bridged configuration
- DC-coupled, fully symmetrical J-FET class-A input stage and high-bias current class-A/B output stage
- In-house, manually matched lateral MOSFET power transistors

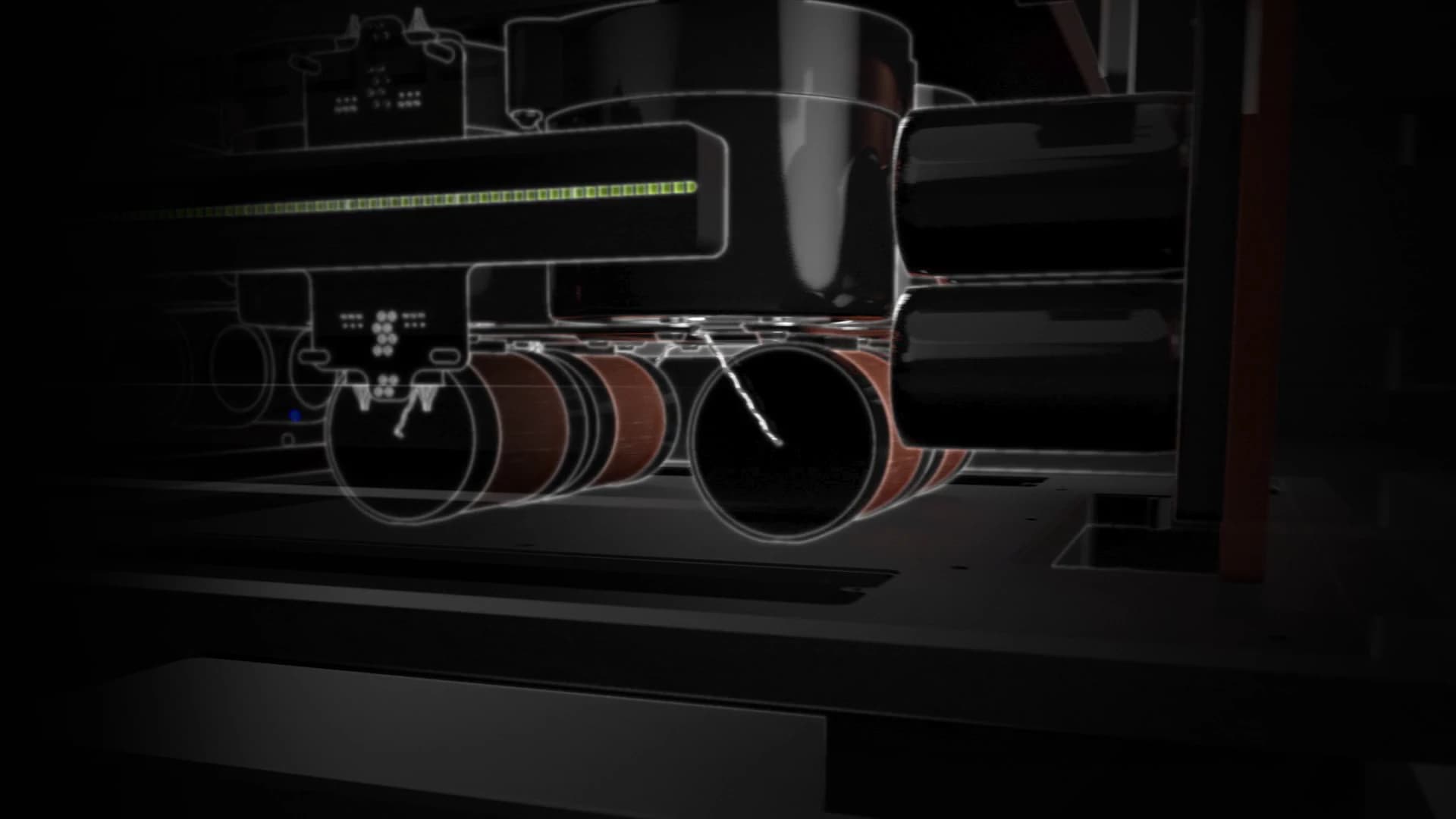

- Overspecified Mundorf electrolytic capacitor bank
- Jupiter and Duelund copper foil high quality decoupling capacitors
- High-current common-mode/differential power supply with EMI filters
- Top-grade chassis anodization and protective nano-coating
- Signature haute horlogerie–level, hand-brushed, hand-applied nano-coating
- Software-controlled, monitored protection system that prevents excessive output current, regulates DC voltage across the output terminals, eliminates unwanted RFI, and monitors amplifier module temperature
- Instant switch-off system protecting the loudspeakers
- Military-grade, degradation-free solid-state relay safeguard system featuring ultra-fast 0.8 mΩ transient contact resistance

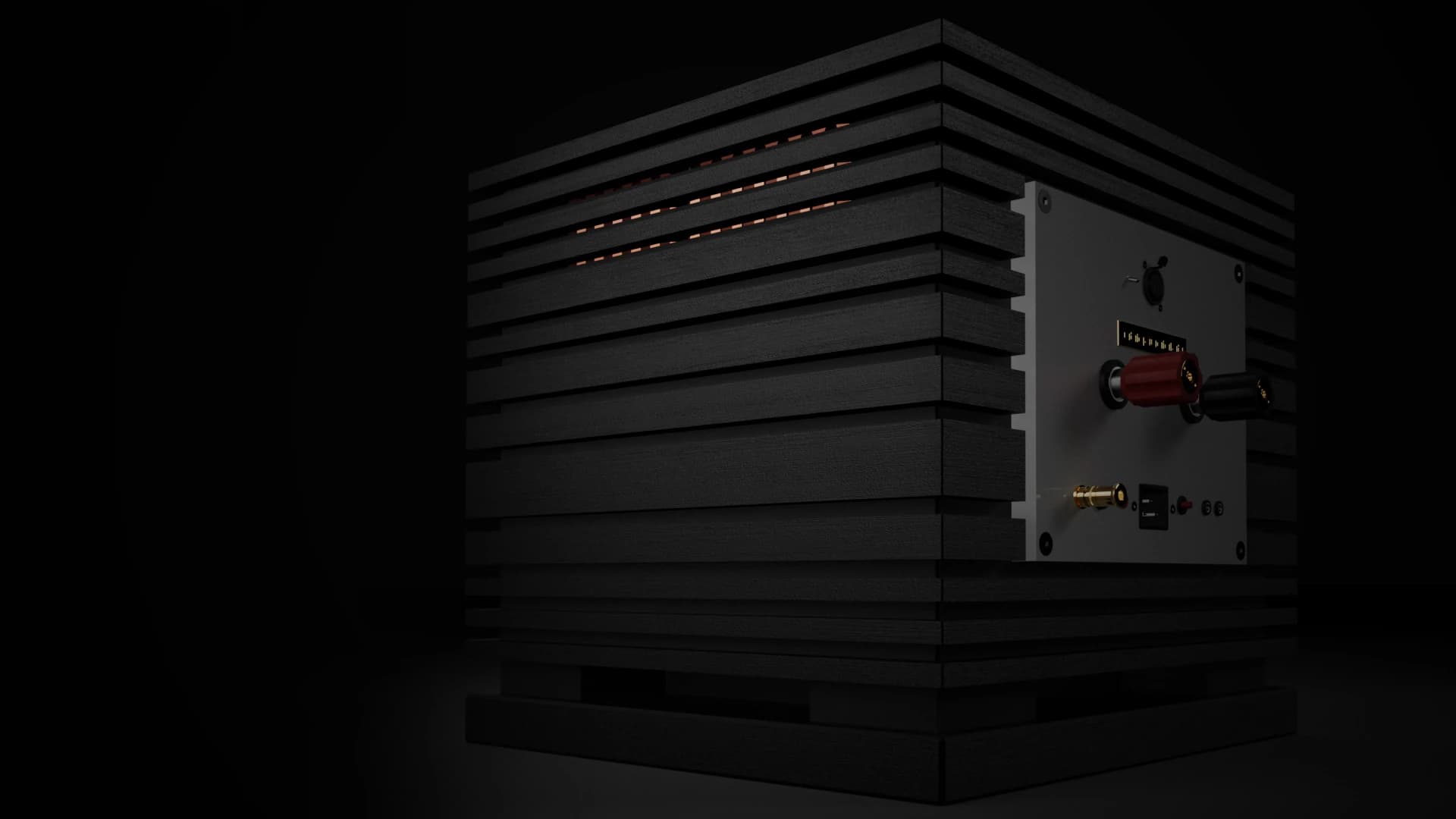

- Highest-quality TUM copper, silver plated loudspeaker terminals
- Custom copper, silver-plated high-current internal PCB terminals
- Pure modern unregulated SMPS power supply
- 73 dB-range power VU/peak-hold meter
- Unique top plate with Stand-by/On push button
TECHNICAL SPECIFICATIONS
All UBICUBE amplifiers operate in high Class AB, offering at least 10 W in pure Class A for exceptional linearity and low distortion at low volumes. At all times, they deliver unaltered, perfectly consistent, lightning-fast, on-demand power, never faltering even with thunderous orchestral compositions, highly demanding modern hybrid film scores, or intricate electronic productions.

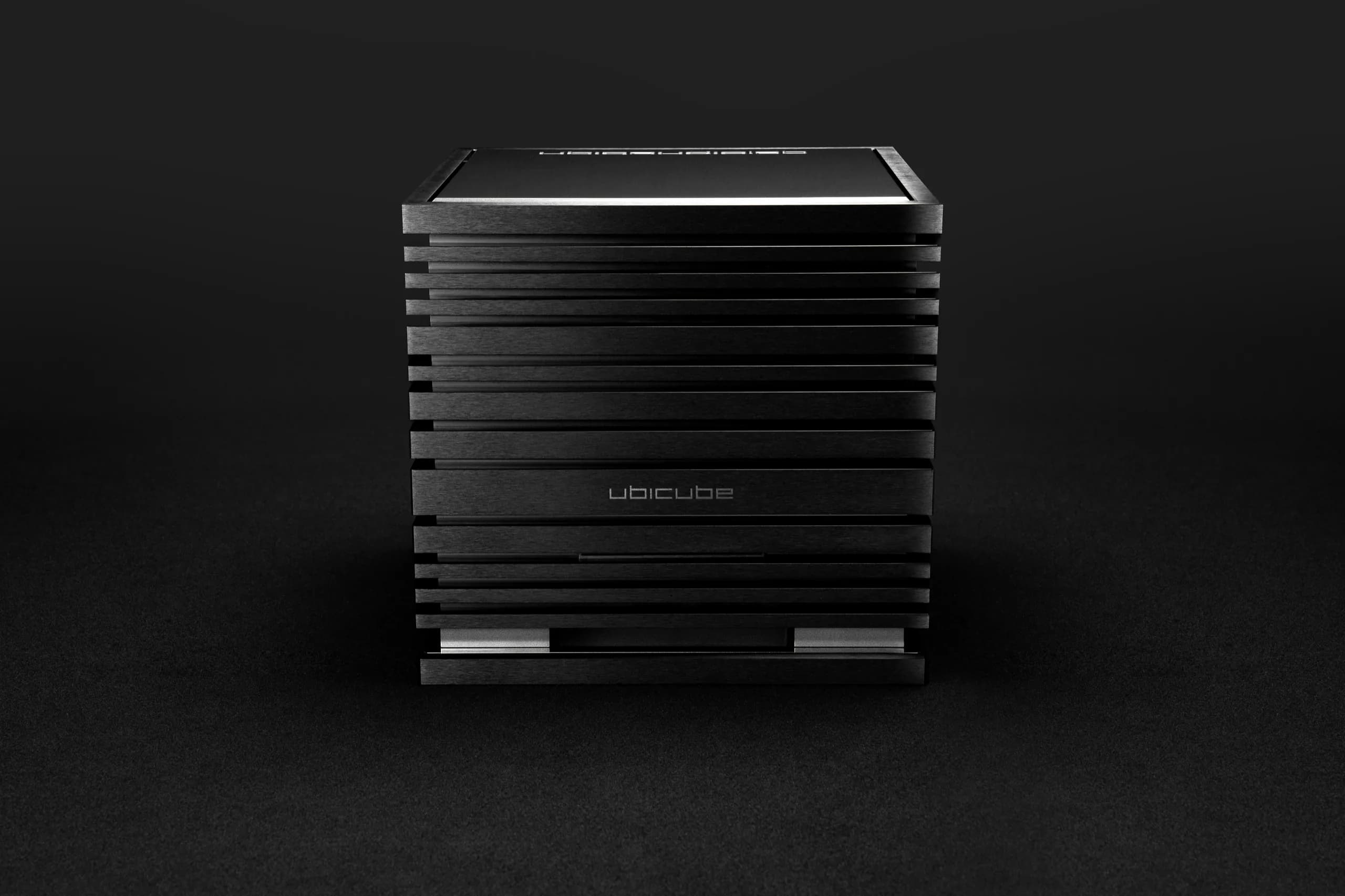

UBICUBE 700
The flagship. A formidable 700 W into 8 ohms, 1,200 W into 4 ohms, and 2,000 W into 2 ohms, driving loudspeakers stably down to 1 ohm – conceived to handle the most demanding loads and the finest loudspeakers on the market.
- Power output: 700 W / 8 Ω; 1,200 W / 4 Ω; 2,000 W / 2 Ω
- Frequency response (−3 dB): DC – 500 kHz
- Damping factor: >500 at 8 Ω load
- Output current max.: 60 A rms, 90 A peak, protection monitored
- Capacitance: 520,000 µF
- Energy storage: 1,032 J
- Gain: +27.75 dB (24.4 × input voltage)
- THD + N: <0.01% at 100 W / 8 Ω
- Signal to noise ratio: >110 dB below rated power
- Inputs: 1 × balanced (XLR), DC coupled
- Input impedance: 167 kΩ balanced
- Dimensions: 432 × 432 × 420 mm
- Weight: 101 kg
HANDCRAFTED
Every ubiqaudiolab product is built by hand, with no corners cut and no slips into subjectivity. Our designs combine an innovative interplay of art and technology – free of distortion, listening fatigue, and sonic signature – presenting reality objectively, with unique clarity of origin and presence, where the music is inseparable from its core qualities.
