UBICUBE 400
UBICUBE 200
MONO POWER AMPLIFIERS
Envisioned and conceived from the outset to handle the most demanding loads and drive the finest loudspeakers on the market.

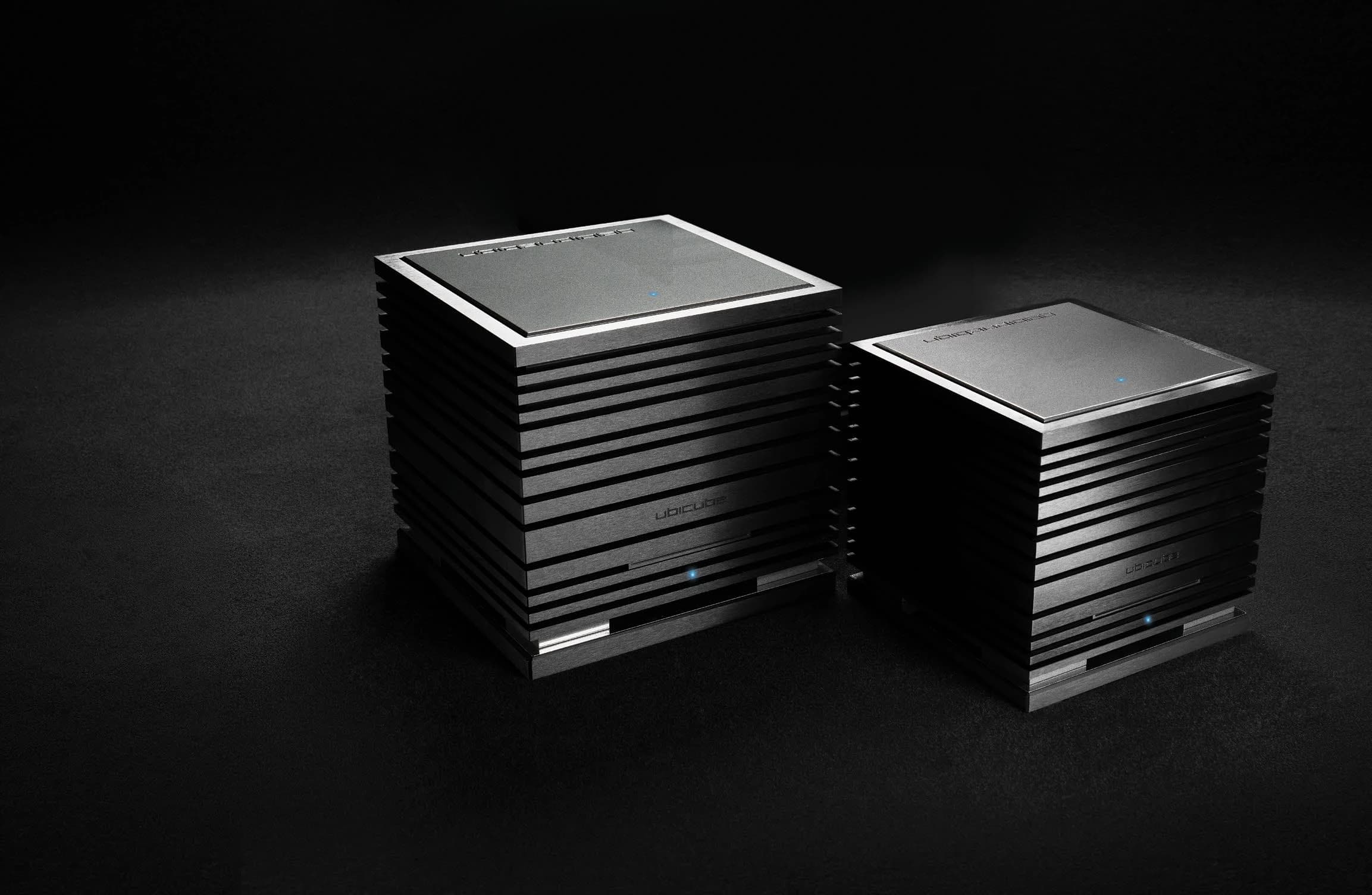

UBICUBE 400 / 200
Like its gigantic sibling, the UBICUBE 700, the UBICUBE 400 amplifier delivers the same uncompromising high-end audio performance in a slightly smaller form factor, meeting the needs of listening rooms where the gargantuan UBICUBE 700 is too large.
Following the same principles and spirit, the UBICUBE 200 mono amplifier is built on the essence of the UBICUBE 700 and UBICUBE 400, yet further optimized to perfectly drive even the most demanding, highly efficient, state-of-the-art speakers from 97 dB onward. The UBICUBE 200 focuses on purity and minimalism.
The UBICUBE 200 and 400 incorporates proprietary, boutique audiophile grade power modules, an engineering marvel – an ultra-refined approach with the shortest possible signal paths – that works seamlessly with an enormous, oversized yet highly advanced power supply.
UBIQAUDIOLAB proprietary technologies enable UBICUBE 200 and 400 to access an infinite density of acoustic information, revealing the most subtle, feather-light nuances of the human voice and acoustic instruments, the smallest portions of reverberation tails, and the tiniest taps of ambient echoes, with music emerging from submarine, absolute-black depths.
At all times, the UBICUBE 200 and 400 amplifiers delivers unaltered, perfectly consistent, lightning-fast, on-demand power, ready to adapt to any type or genre of music, never faltering even with complex music material such as thunderous orchestral compositions, highly demanding modern hybrid film scores, or intricate electronic productions.
In line with UBIQAUDIOLAB’s ethos of putting musical performance and music first, these unique technologies ensure a complete absence of distortion, listening fatigue, and sonic signature, allowing the music to command the listener’s attention and instantly ignite one-of-a-kind emotional engagement and interaction.
SPECIAL FEATURES
- Timeless unique design
- Proprietary boutique-level ultra performing power modules
- Solid aluminum monocoque chassis with optimal mechanical stability, vibration control, and heat dissipation
- Massive internal copper heat-dissipation plates with chimney-effect airflow for ultra-fast heat transfer from the power amplifier modules
- Ultra-high-performance monoblock bridged configuration
- DC-coupled, fully symmetrical J-FET class-A input stage and high-bias current class-A/B output stage
- In-house, manually matched lateral MOSFET power transistors
- Overspecified Mundorf electrolytic capacitor bank
- Jupiter and Duelund copper foil high quality decoupling capacitors
- High-current common-mode/differential power supply with EMI filters
- Top-grade chassis anodization and protective nano-coating
- Signature haute horlogerie–level, hand-brushed, hand-applied nano-coating
- Software-controlled, monitored protection system that prevents excessive output current, regulates DC voltage across the output terminals, eliminates unwanted RFI, and monitors amplifier module temperature
- Instant switch-off system protecting the loudspeakers
- Military-grade, degradation-free solid-state relay safeguard system featuring ultra-fast 0.8 mΩ transient contact resistance
- Highest-quality TUM copper, silver plated loudspeaker terminals
- Custom copper, silver-plated high-current internal PCB terminals
- Pure modern unregulated SMPS power supply
- 73 dB-range power VU/peak-hold meter
- Unique top plate with Stand-by/On push button
TECHNICAL SPECIFICATIONS
All UBICUBE amplifiers operate in high Class AB, offering at least 10 W in pure Class A for exceptional linearity and low distortion at low volumes. At all times, they deliver unaltered, perfectly consistent, lightning-fast, on-demand power, never faltering even with thunderous orchestral compositions, highly demanding modern hybrid film scores, or intricate electronic productions.
UBICUBE 400
The same uncompromising high-end audio performance in a slightly smaller form factor, for listening rooms where the gargantuan UBICUBE 700 is too large.
- Power output: 400 W / 8 Ω; 700 W / 4 Ω; 1,200 W / 2 Ω
- Frequency response (−3 dB): DC – 500 kHz
- Damping factor: >500 at 8 Ω load
- Output current max.: 40 A rms, 60 A peak, protection monitored
- Capacitance: 268,000 µF
- Energy storage: 271 J
- Gain: +27.75 dB (24.4 × input voltage)
- THD + N: <0.01% at 100 W / 8 Ω
- Signal to noise ratio: >110 dB below rated power
- Inputs: 1 × balanced (XLR), DC coupled
- Input impedance: 167 kΩ balanced
- Dimensions: 333 × 333 × 318 mm
- Weight: 47 kg
UBICUBE 200
Built on the essence of the UBICUBE 700 and 400, further optimized to perfectly drive even the most demanding highly efficient state-of-the-art speakers from 97 dB onward. The UBICUBE 200 focuses on purity and minimalism.
- Power output: 200 W / 8 Ω; 350 W / 4 Ω; 600 W / 2 Ω
- Frequency response (−3 dB): DC – 500 kHz
- Damping factor: >500 at 8 Ω load
- Output current max.: 20 A rms, 40 A peak, protection monitored
- Capacitance: 228,000 µF
- Energy storage: 182 J
- Gain: +27.75 dB (24.4 × input voltage)
- THD + N: <0.01% at 100 W / 8 Ω
- Signal to noise ratio: >110 dB below rated power
- Inputs: 1 × balanced (XLR), DC coupled
- Input impedance: 167 kΩ balanced
- Dimensions: 277 × 277 × 265 mm
- Weight: 28 kg
HANDCRAFTED
Every ubiqaudiolab product is built by hand, with no corners cut and no slips into subjectivity. Our designs combine an innovative interplay of art and technology – free of distortion, listening fatigue, and sonic signature – presenting reality objectively, with a unique clarity of origin and presence, where the music is inseparable from its core qualities.
